| Merknaam: | VIKSTARS |
| Modelnummer: | VS-LH-F |
| MOQ: | 20 -stcs |
| Verpakking: | VS-LH-E60, Lampgrootte: 84*40*19,5 cm, AANTAL/CTN: 1pc/ctn, CTN-MAAT: 107,5*44*14,5 cm |
| Betalingsvoorwaarden: | T/T, Western Union |
| LAMP NAME |
INTEGRATED SOLAR STREET LIGHT
|
|||
|---|---|---|---|---|
| MODEL NO. |
VS-LH-E60
|
VS-LH-E80 | VS-LH-E100 | VS-LH-E120 |
| POWER | 600W | 800W |
1000W
|
1200W |
| BATTERY | 3.2V 50AH | 3.2V 70AH | 3.2V 90AH | 3.2V 110AH |
| SOLAR PANEL | Mono 6V 60W | Mono 6V 80W | Mono 6V 100W | Mono 6V 120W |
| LUMEN | 3200lm | 4000lm | 4800lm | 5600lm |
| LEDs | Big chip 5054 leds | |||
| BEAM ANGLE |
70*140°
|
|||
| CCT |
Default: Cold White
|
|||
| C.R.I. |
>70Ra
|
|||
| CHARGE TIME |
4-6 hours
|
|||
| LASTING TIME |
3-5 rainy days
|
|||
| INSTALL HEIGHT |
3-6m
|
6-8m | 8-10m | 10-12m |
| LIGHTING AREA | 30-40㎡ | 40-50㎡ | 50-60㎡ | 60-70㎡ |
| WORKING MODE |
Light Sensor + Time Control
|
|||
| INSTALL WAY |
Horizontal Install / Vertical Install
|
|||
| WATERPROOF | IP66 | |||
| MATERIAL |
Galvanized Steel Heat Sink + PC Lens / Sand Grey
|
|||
| LAMP SIZE |
840*400*265mm
|
1110*400*265mm | 1310*400*265mm | 1598*400*265mm |
| SOLAR PANEL SIZE | 836*396mm | 1106*396mm | 1306*396mm | 1594*396mm |
| PACKING |
1pc/ctn
( Individual packaging, not include lamp pole, need to buy additionally )
|
|||
| WARRANTY | 5 years | |||

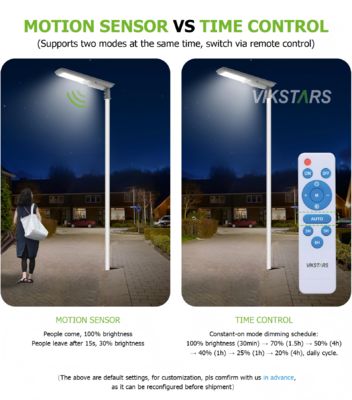

WORKING MODE
Constant-on mode dimming schedule: 100% brightness (30min) → 70% (1.5h) →
|
Straight Arm Install Horizontal Installation |
Adjustable Arm Install Horizontal / Vertical Installation |
INSTALL HEIGHT
REAL PHOTOs
|
Power
|
Carton Size |
Qty/ctn
|
G.W. | Packing |
| 600W | 1075*440*145mm |
1pc/ctn
|
|
Export Neutral Carton
/ VIKSTARS Brand
/ Customizing Packing |
| 800W | 1345*440*145mm | |||
| 1000W | 1545*440*145mm | |||
| 1200W | 1835*440*145mm |
|
|
| Merknaam: | VIKSTARS |
| Modelnummer: | VS-LH-F |
| MOQ: | 20 -stcs |
| Verpakking: | VS-LH-E60, Lampgrootte: 84*40*19,5 cm, AANTAL/CTN: 1pc/ctn, CTN-MAAT: 107,5*44*14,5 cm |
| Betalingsvoorwaarden: | T/T, Western Union |
| LAMP NAME |
INTEGRATED SOLAR STREET LIGHT
|
|||
|---|---|---|---|---|
| MODEL NO. |
VS-LH-E60
|
VS-LH-E80 | VS-LH-E100 | VS-LH-E120 |
| POWER | 600W | 800W |
1000W
|
1200W |
| BATTERY | 3.2V 50AH | 3.2V 70AH | 3.2V 90AH | 3.2V 110AH |
| SOLAR PANEL | Mono 6V 60W | Mono 6V 80W | Mono 6V 100W | Mono 6V 120W |
| LUMEN | 3200lm | 4000lm | 4800lm | 5600lm |
| LEDs | Big chip 5054 leds | |||
| BEAM ANGLE |
70*140°
|
|||
| CCT |
Default: Cold White
|
|||
| C.R.I. |
>70Ra
|
|||
| CHARGE TIME |
4-6 hours
|
|||
| LASTING TIME |
3-5 rainy days
|
|||
| INSTALL HEIGHT |
3-6m
|
6-8m | 8-10m | 10-12m |
| LIGHTING AREA | 30-40㎡ | 40-50㎡ | 50-60㎡ | 60-70㎡ |
| WORKING MODE |
Light Sensor + Time Control
|
|||
| INSTALL WAY |
Horizontal Install / Vertical Install
|
|||
| WATERPROOF | IP66 | |||
| MATERIAL |
Galvanized Steel Heat Sink + PC Lens / Sand Grey
|
|||
| LAMP SIZE |
840*400*265mm
|
1110*400*265mm | 1310*400*265mm | 1598*400*265mm |
| SOLAR PANEL SIZE | 836*396mm | 1106*396mm | 1306*396mm | 1594*396mm |
| PACKING |
1pc/ctn
( Individual packaging, not include lamp pole, need to buy additionally )
|
|||
| WARRANTY | 5 years | |||
WORKING MODE
Constant-on mode dimming schedule: 100% brightness (30min) → 70% (1.5h) →
|
Straight Arm Install Horizontal Installation |
Adjustable Arm Install Horizontal / Vertical Installation |
INSTALL HEIGHT
REAL PHOTOs
|
Power
|
Carton Size |
Qty/ctn
|
G.W. | Packing |
| 600W | 1075*440*145mm |
1pc/ctn
|
|
Export Neutral Carton
/ VIKSTARS Brand
/ Customizing Packing |
| 800W | 1345*440*145mm | |||
| 1000W | 1545*440*145mm | |||
| 1200W | 1835*440*145mm |
